Drill pipe / Drill rod / Drill tube

whether you call it Drill pipe , Drill rod , Drill tube we are reliable source for your drill pipe needs.We offer superior quality drill pipe designed for water well , mining and civil construction applications

The sizes are here for your convenience please contact us if you do not find what you need.

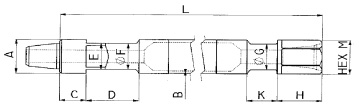

OD Wall Length Weght Distance from shoulder Across Flat Recess Dia. Recess Dia. Recess Location Recess Length Across Hex Connection P/N
A B L . C E F G H K M . .
. . . . . . . . . . . . .
4" .345" 25' 365 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 3/4" 3 1/2" 2 3/8 Reg 10-1980
4" .345" 30' 435 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 3/4" 3 1/2" 2 3/8 Reg 10-1989
. . . . . . . . . . . . .
4 1/2" .337" 25' 415 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 3/8" 4" 3 1/2 Reg 10-1228
4 1/2" .337" 25' 415 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 3/8" 4" 2 7/8 IF 10-1357
. . . . . . . . . . . . .
4 1/2" .337" 30' 490 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 3/8" 4" 3 1/2 Reg 10-1841
4 1/2" .337" 30' 490 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 3/8" 4" 2 7/8 IF 10-1712
4 1/2" .500" 30' 670 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 3/8" 4" 3 1/2 Reg 10-1515
4 1/2" .750" 25' 830 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 3/8" 4" 3 1/2 Reg 10-1657
4 1/2" .750" 30' 990 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 3/8" 4" 3 1/2 Reg 10-1515
. . . . . . . . . . . . .
5" .336" 25' 520 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 1/2" 4" 3 1/2 Reg 10-1882
5" .336" 30' 610 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 1/2" 4" 3 1/2 Reg 10-1681
5" .500" 25' 630 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 1/2" 4" 3 1/2 Reg 10-1593
5" .500" 30' 755 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 1/2" 4" 3 1/2 Reg 10-1685
5" .750" 25' 905 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 1/2" 4" 3 1/2 Reg 10-1682
5" .750" 30' 1080 lbs 3" 3 1/2" 3 1/2" 3 1/2" 5" 3 1/2" 4" 3 1/2 Reg 10-1683
. . . . . . . . . . . . .
5 1/2" .500" 25' 735 lbs 3" 4 1/2" 4 1/2" 4 1/2" 5" 3 3/8" 5" 3 1/2 Beco 10-1982
5 1/2" .500" 30' 865 lbs 3" 4 1/2" 4 1/2" 4 1/2" 5" 3 3/8" 5" 3 1/2 Beco 10-1985
. . . . . . . . . . . . .
5 1/2" .500" 25' 735 lbs 3" 4 1/2" 4 1/2" 4 1/2" 5" 3 3/8" 5" 4 FH 10-1983
5 1/2" .500" 30' 865 lbs 3" 4 1/2" 4 1/2" 4 1/2" 5" 3 3/8" 5" 4 FH 10-1986
. . . . . . . . . . . . .
5 1/2" .750" 25' 1045 lbs 3" 4 1/2" 4 1/2" 4 1/2" 5" 3 3/8" 5" 3 1/2 Beco 10-1765
5 1/2" .750" 30' 1240 lbs 3" 4 1/2" 4 1/2" 4 1/2" 5" 3 3/8" 5" 3 1/2 Beco 10-1810
. . . . . . . . . . . . .
5 1/2" .750" 25' 1045 lbs 3" 4 1/2" 4 1/2" 4 1/2" 5" 3 3/8" 5" 4 FH 10-1984
5 1/2" .750" 30' 1240 lbs 3" 4 1/2" 4 1/2" 4 1/2" 5" 3 3/8" 5" 4 FH 10-1987
